UHF Mat Blank Segment

Increases the length of your UHF Mat line.

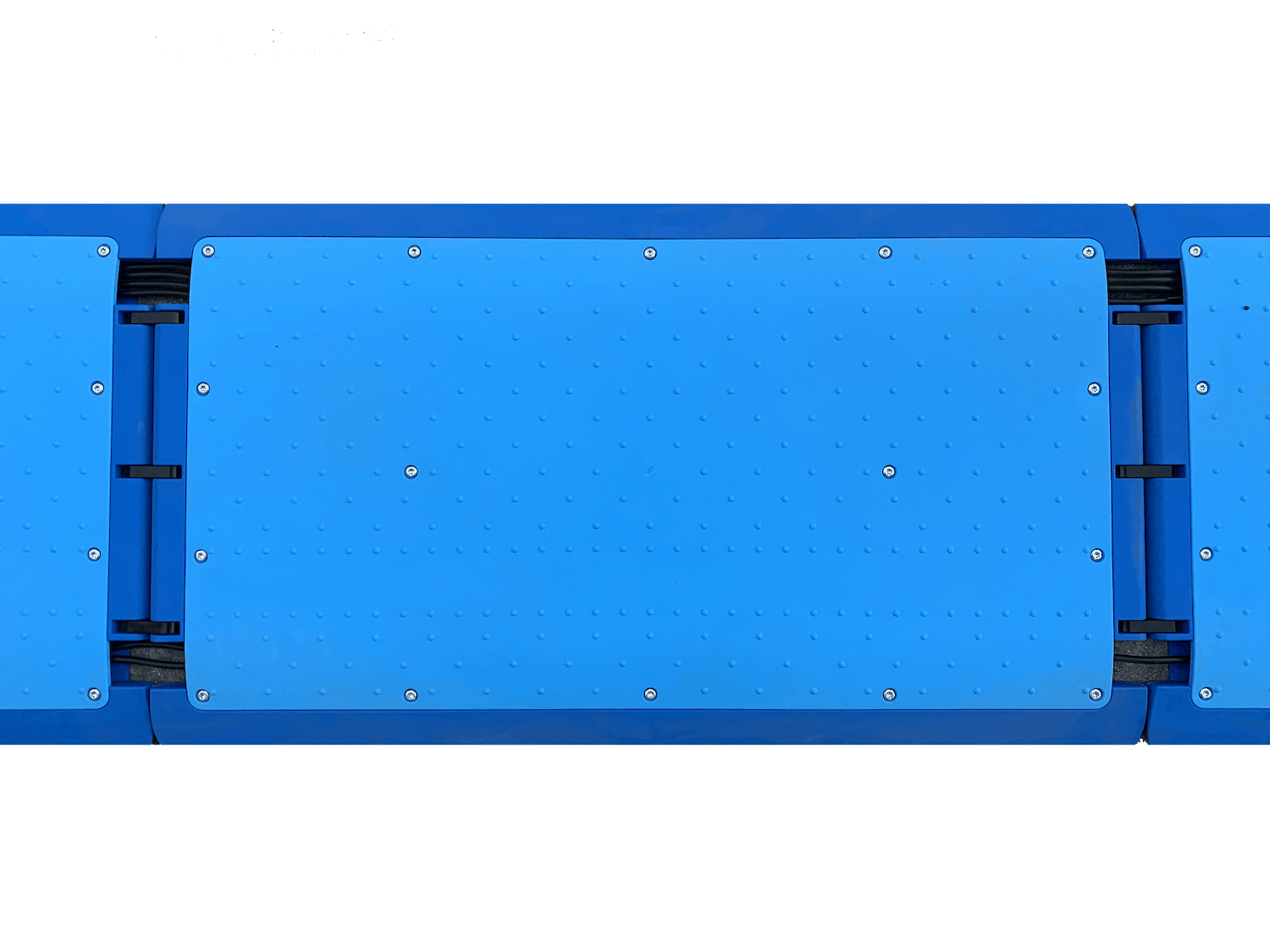

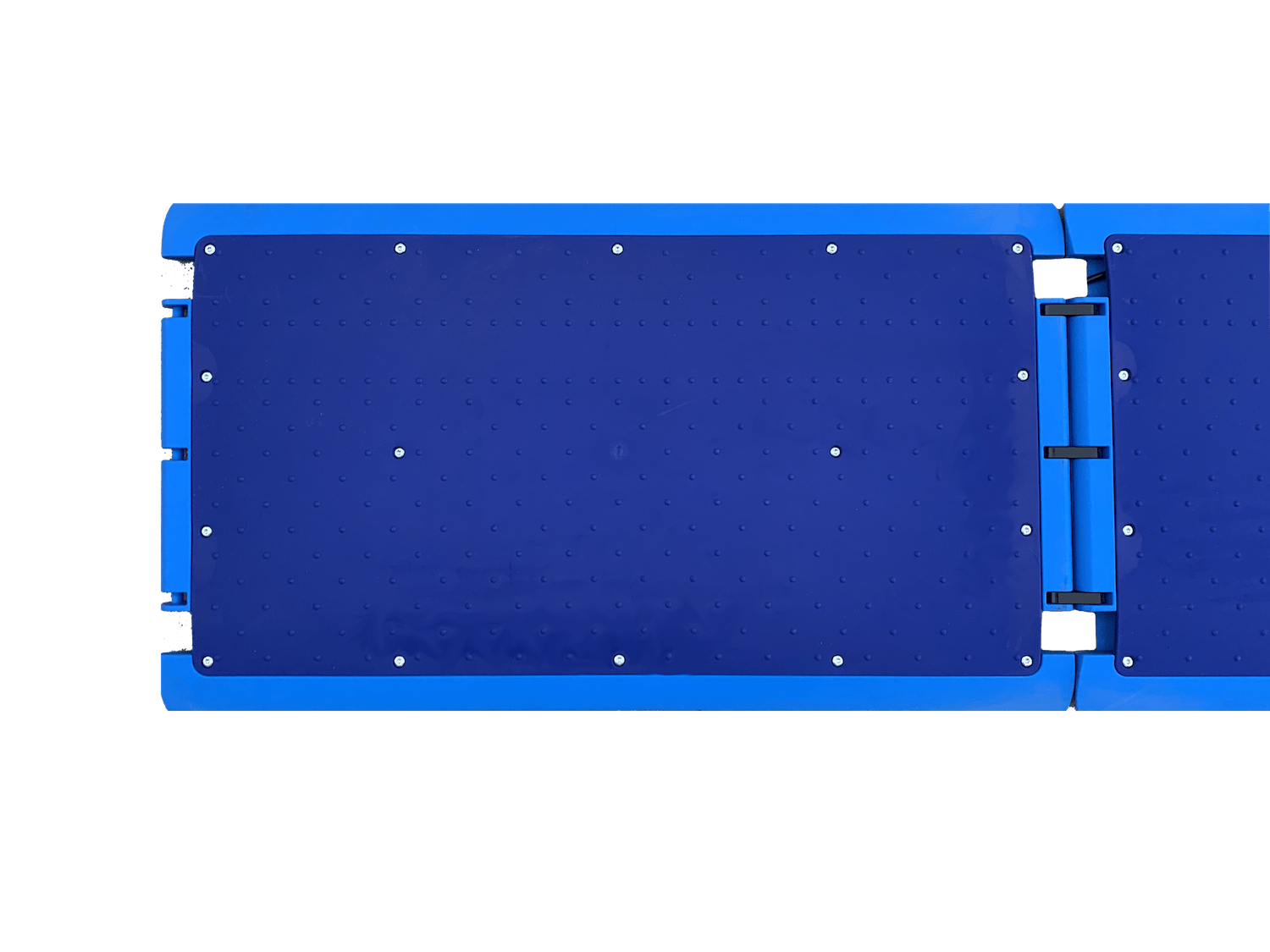

  • Increase the length of your UHF Mat line by adding blank segments.
  • Each blank segment is 65 cm long, 37 cm wide and 22 mm high.

Blank Segments Split

This configuration is recommended for wide split timing points and uses blank segments to increase the width of the line. A blank segment should not be used opposite another blank segment (dark blue indicates a blank segment in this diagram). Where possible, avoid using blank segments on high traffic timing points or on parts of the line where participant traffic is highest, such as the center. Using blank segments will reduce signal strength and make lead to decreased read rates. This diagram shows 2 x 4 port (2.6 Meter) UHF Mat being used with 1 x 8 port TimeMachine UHF or Hybrid to create a 5.2m line, it is possible to use 2 x 8 port (5.2m Meter) UHF Mat with 2 x 8 port TimeMachine UHF or Hybrid to create a 10.4m line.
